Hexagonal Wire Netting
Material: low carbon steel wire, stainless steel wire.
Weaving: Straight twist, reverse twist, double twist, the first series after plating, after plating the first series, is divided into hot-dipped galvanized, electric galvanized, PVC coated and so on.
Features: Firm structure, flat surface, has a good anti-corrosion, anti-oxidation characteristics.
Uses: For feeding chicken, ducks, geese, rabbits and zoo fence, machinery and equipment protection, highway guardrail, sports venues fence, the road green belt protection net. The mesh in the production into a box-shaped containers, cages filled with rocks, etc., can be used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering.
 |
 |
 |
 |
 |
 |
| |
|
|

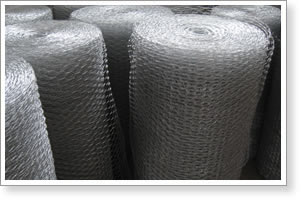

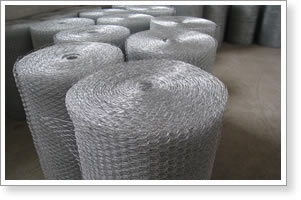

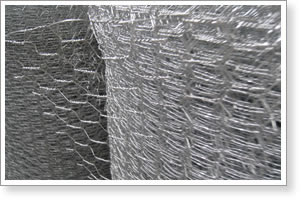

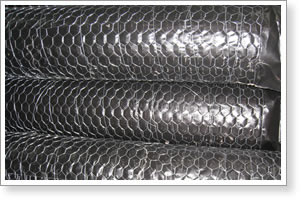

Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
|
Mesh |
Wire Gauge (BWG) |
|
Inch |
mm |
|
3/8" |
10mm |
27,26,25,24,23,22,21 |
|
1/2" |
13mm |
25,24,23,22,21,20, |
|
5/8" |
16mm |
27,26,25,24,23,22 |
|
3/4" |
20mm |
25,24,23,22,21,20,19 |
|
1" |
25mm |
25,24,23,22,21,20,19,18 |
|
1-1/4" |
32mm |
22,21,20,19,18 |
|
1-1/2" |
40mm |
22,21,20,19,18,17 |
|
2" |
50mm |
22,21,20,19,18,17,16,15,14 |
|
3" |
75mm |
21,20,19,18,17,16,15,14 |
|
4" |
100mm |
17,16,15,14 |
|
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
|
Mesh |
Wire Gauge(BWG) |
Reinforcement |
|
Inch |
mm |
(BWG) |
Width(ft) |
Strand |
|
1" |
25mm |
22,21,20,18 |
2' |
1 |
|
1-1/4" |
32mm |
22,21,20,18 |
3' |
2 |
|
1-1/2" |
40mm |
20,19,18 |
4' |
3 |
|
2" |
50mm |
20,19,18 |
5' |
4 |
|
3" |
75mm |
20,19,18 |
6' |
5 |
|

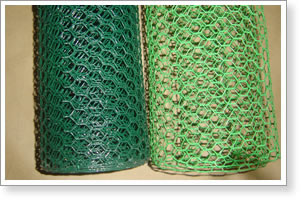

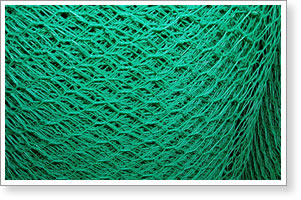

Hex. wire netting PVC-coated (width of 0.5M-2.0M) |
|
Mesh |
Wire Dia(mm) |
|
Inch |
mm |
|
1/2" |
13mm |
0.9mm,0.1mm |
|
1" |
25mm |
1.0mm,1.2mm,1.4mm |
|
1-1/2" |
40mm |
1.0mm,1.2mm,1.4mm,1.6mm |
|
2" |
50mm |
1.0mm,1.2mm,1.4mm,1.6mm |
|
|
